PWDM Bosa Module For CATV Receiver 1310nm 1490nm 1550nm Filter FWDM Module Optical Receiver FTTH PWDM
Description
UT-King’s PWDM is used for packaging of optical module. It can realize the multiplexing of two communication signal, which expands the capacity of single fiber and achieves bi-directional communication. It is widely used in optical network upgrade and expansion, or introduce new comprehensive business (CATV, TELECOM, integration of three networks-PON+EOC) etc.
Features
- Low insertion loss
- Wide band
- high channel isolation
- High stability and reliability
- Epoxy-free optical path
Specification
| Type | Fiberer-PWDM |
| Operating wavelength T transmission wavelength R reflection wavelength | nm | T-1530~1620 R-1310/1550 & 1490/1310 |
| T1550 R1310/1490 |
| T1490 R1310/1550 |
| Transmission insertion loss | dB | 0.80 0.20 0.30 0.10 0.20 0.30 |
| Reflection insertion loss | dB | 0.60 |
| Transmission channel isolation | dB | 30 |
| Reflection channel isolation | dB | 17 |
| PDL | dB | 0.1 0.05 0.05 0.05 0.10 |
| Wavelength thermal stability | nm/ | 0.003 |
| Insertion loss thermal stability | dB/ | 0.005 |
| Directivity | dB | 55 |
| Return loss | dB | 45 |
| Operating temperature | | -20~+70 |
| Storage temperature | | -40~+85 |
| Note:Customization is available. |
Ordering Information:
| A | B | C | D | E |
| Wavelength | Tube Type | Fiber Length
(Include connector) | Connector | Dimension |
T15R13/14=T1550 R1310/1490
T14R13/15=T1490 R1310/1550
T13R14/15=T1310 R1490/1550
T1310=T1310±7.5
X=Others | 25=250um
90=900um
X=Others | 05=0.5m±0.05m
10=1.0m±0.05m
15=1.5m±0.05m
X=Others | OO:None
FP=FC/PC
FA=FC/APC
SP= SC/PC
SA=SC/APC
STP=ST/PC
STA=ST/APC
LP=LC/PC
LA= LC/APC
X=Others | 3214=Φ3.2×14mm
X=Others |

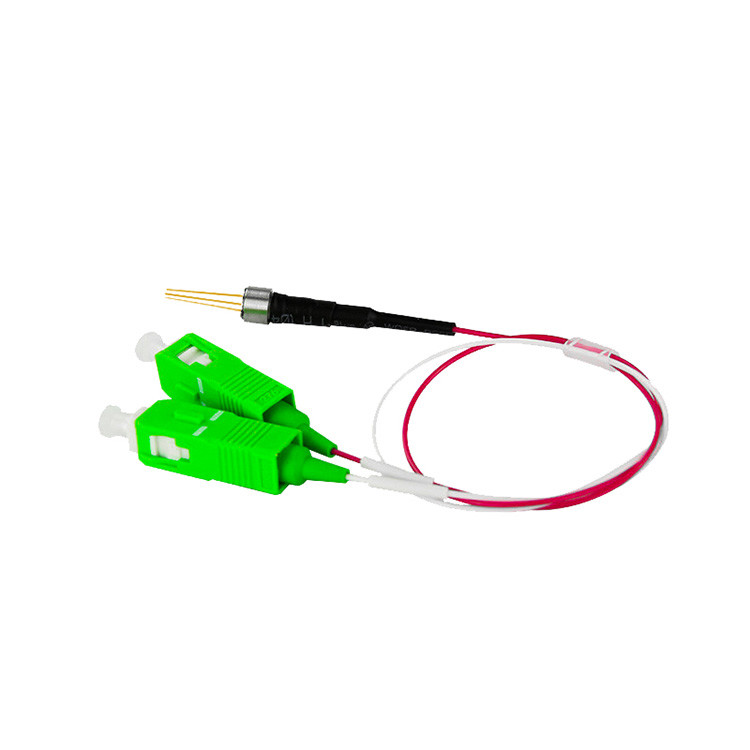

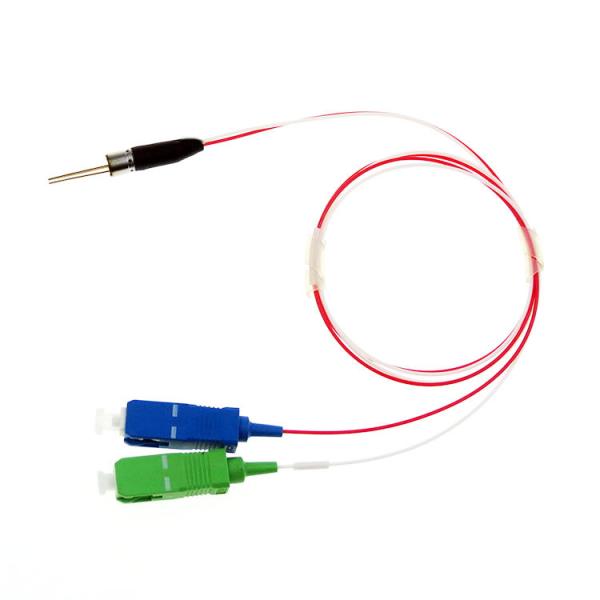

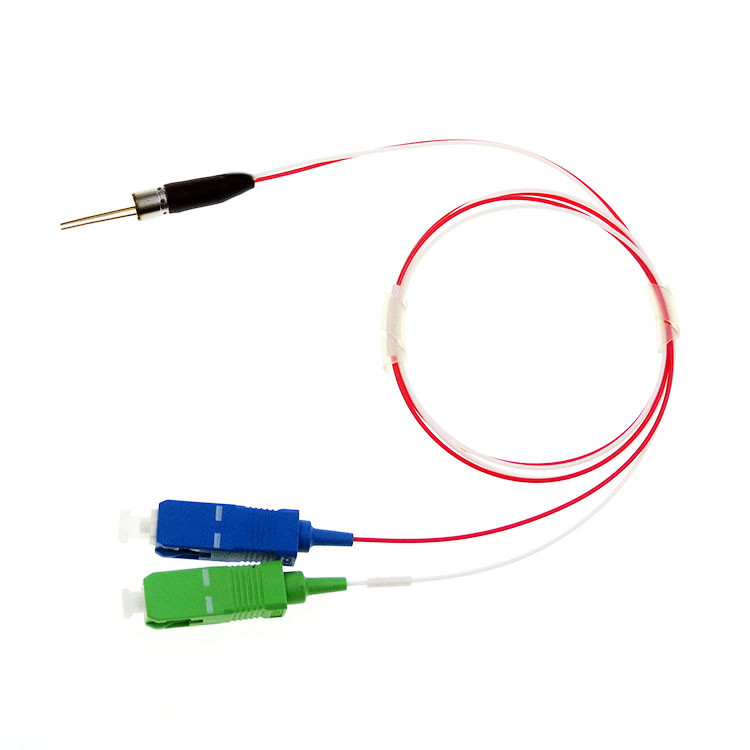

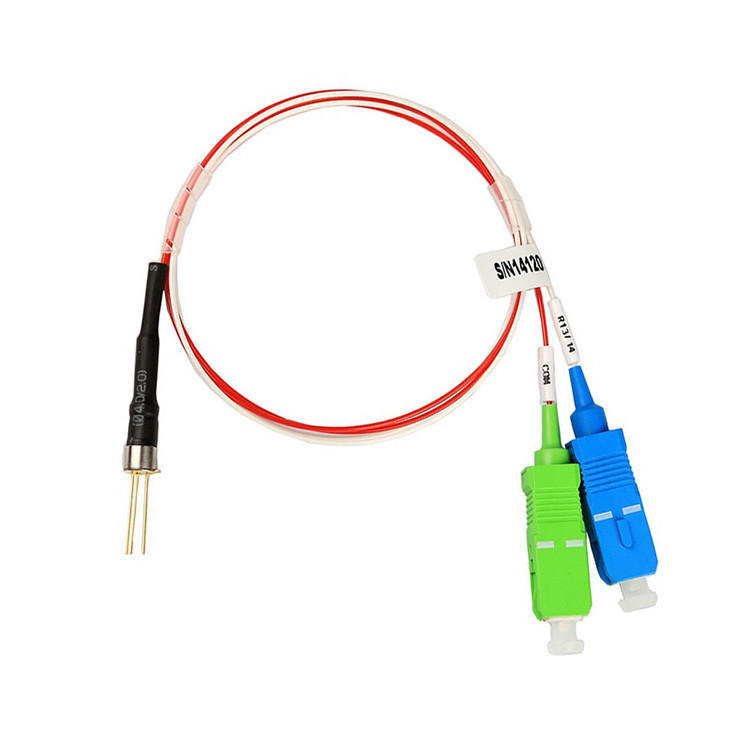

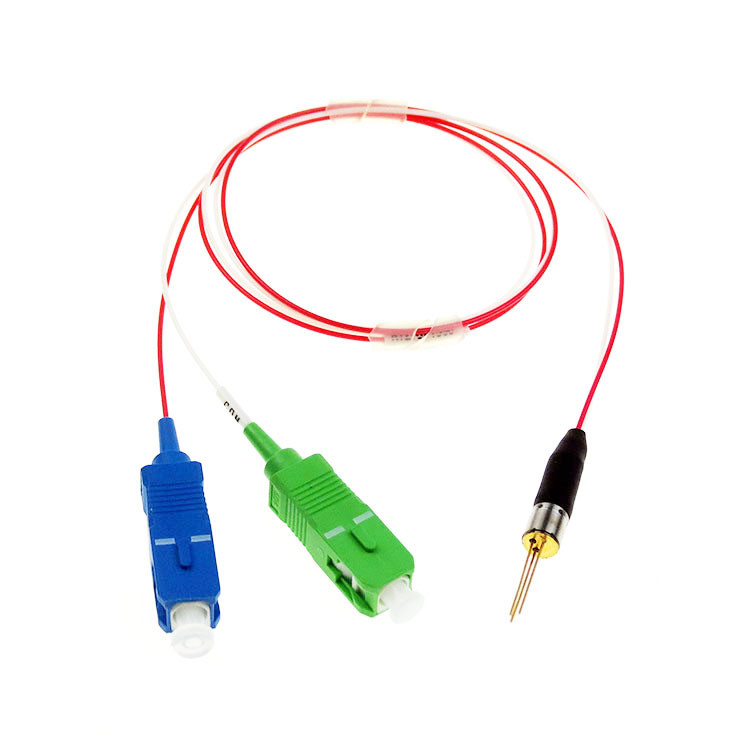

Detailed Images
FAQ
Q: What does pWDM stand for?
A: PWDM stands for "Passive Wavelength-Division Multiplexing.
Q: How to abbreviate "Passive Wavelength-Division Multiplexing"?
A: Passive Wavelength-Division Multiplexing" can be abbreviated as PWDM.
Q: What is the meaning of pWDM abbreviation?
A: The meaning of pWDM abbreviation is "Passive Wavelength-Division Multiplexing".
Q: What is pWDM abbreviation?
A: One of the definitions of pWDM is "Passive Wavelength-Division Multiplexing".
Q: What does pWDM mean?
A: PWDM as abbreviation means "Passive Wavelength-Division Multiplexing".
Q: What is shorthand of Passive Wavelength-Division Multiplexing?
A: The most common shorthand of "Passive Wavelength-Division Multiplexing" is PWDM.
